EN-GAN Custom PA - Power/Freq/Interface Customizable

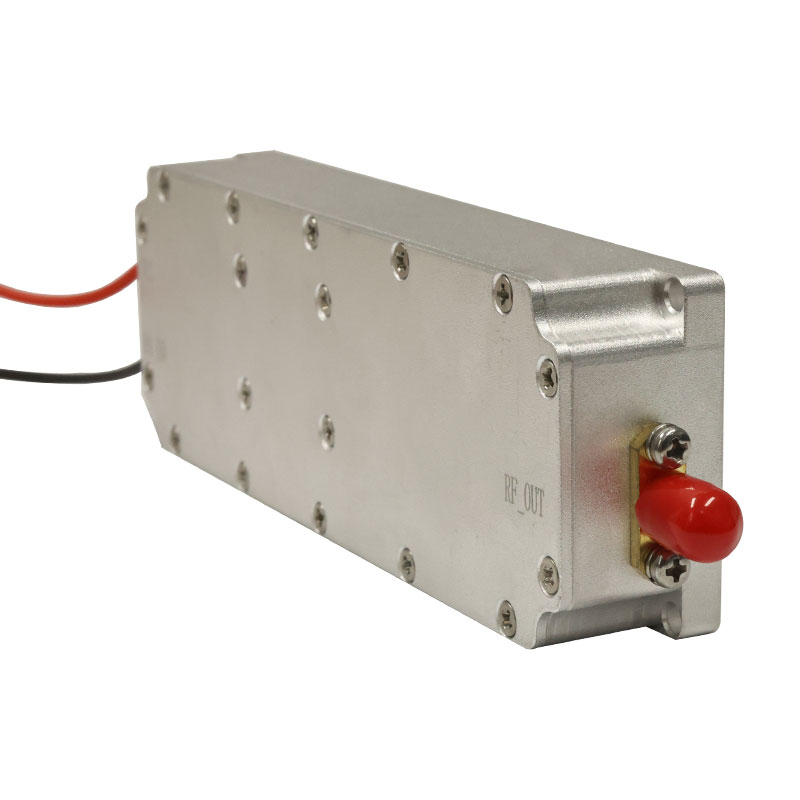

EN-GAN Custom PA - Power/Freq/Interface Customizable 图片 1

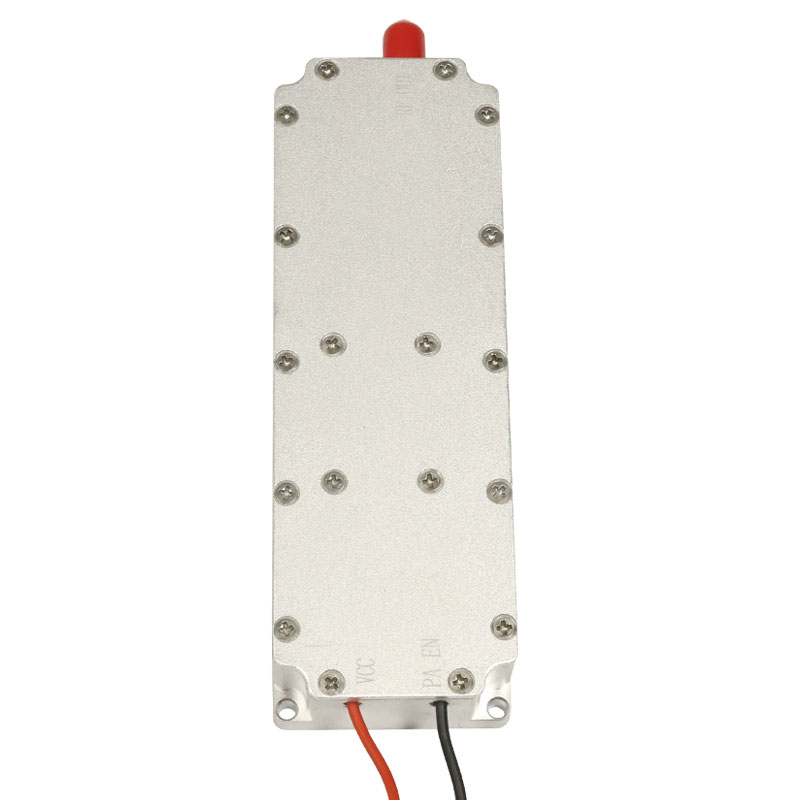

EN-GAN Custom PA - Power/Freq/Interface Customizable 图片 2

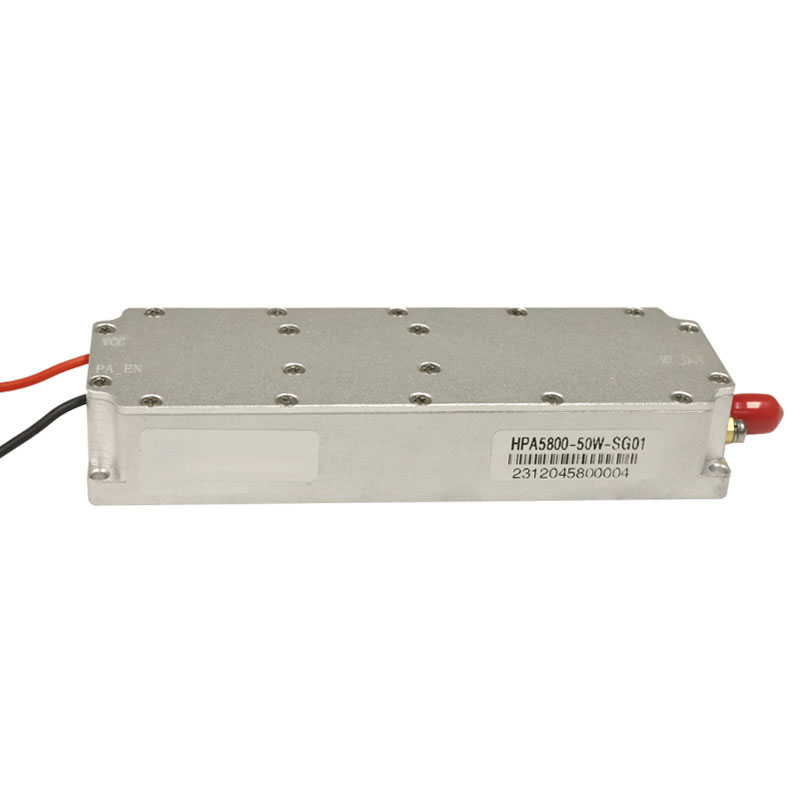

EN-GAN Custom PA - Power/Freq/Interface Customizable 图片 3

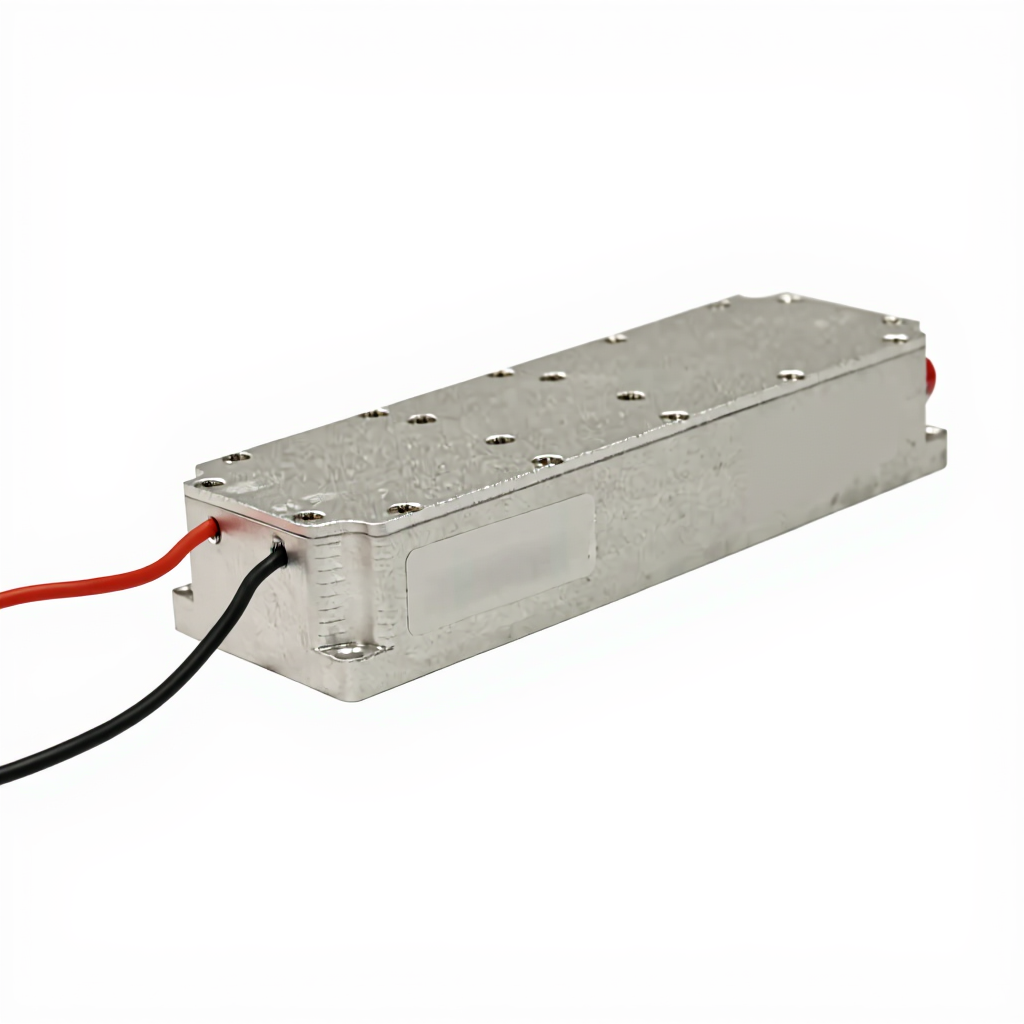

EN-GAN Custom PA - Power/Freq/Interface Customizable 图片 4

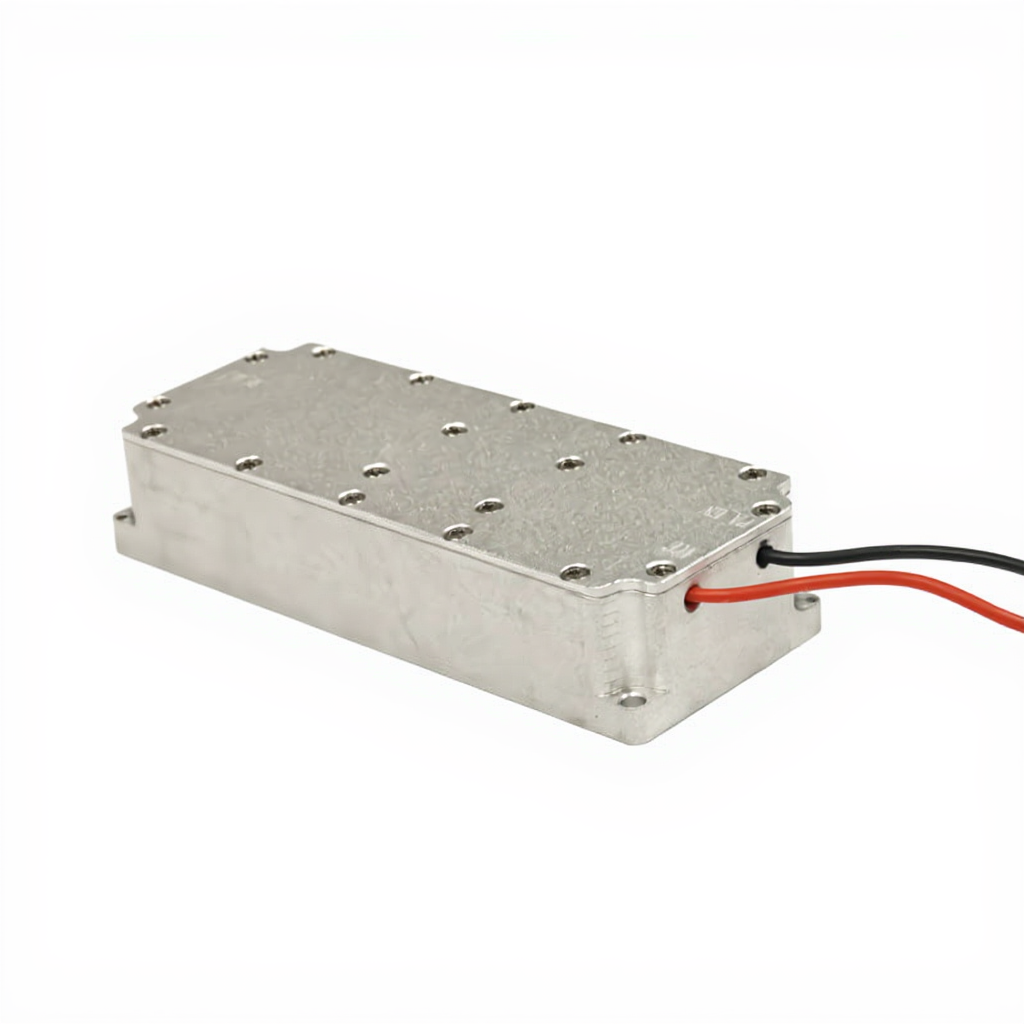

EN-GAN Custom PA - Power/Freq/Interface Customizable 图片 5

EN-GAN Custom PA - Power/Freq/Interface Customizable

销量：0
库存：500
浏览：0

规格选择

默认规格
库存: 500

产品简介

GaN PA: 10-200W, 100MHz-6GHz. Custom pwr/freq/port. Smart protect, CE/FCC cert. 1Y warranty, MOQ 1pc, 15-30d. Email quote.

详细描述

Product Highlights

  • ✅ Flexible Customization - Power(10W-200W), Frequency(100MHz-6GHz), Interface(SMA/N/BNC) fully customizable
  • ✅ GaN Technology - Gallium Nitride tech, high efficiency(>40%), heat-resistant, voltage-resistant
  • ✅ Low MOQ - Minimum order only 1 piece, supports small batch customization
  • ✅ Quick Delivery - Standard customization 15-20 days, complex customization 20-30 days
  • ✅ Built-in Jamming Source Optional - Optional integrated jamming signal source
  • ✅ Intelligent Protection - Over-temperature, over-current, VSWR protection
  • ✅ International Certifications - CE/FCC/RoHS certified
  • ✅ Lifetime Technical Support - Complete technical documentation and lifetime support

Customization Options

💪 Power Customization

Range: 10W ~ 200W

Common Specs:

  • 10W / 20W / 30W - Portable devices
  • 50W / 80W / 100W - Standard applications
  • 150W / 200W - High power applications

Output Accuracy: ±1dB

📡 Frequency Customization

Range: 100MHz ~ 6GHz

Common Bands:

  • 100-200MHz - VHF low band
  • 200-500MHz - VHF high band
  • 500-2000MHz - UHF band
  • 2-6GHz - Microwave band

Bandwidth: Minimum 100MHz

🔌 Interface Customization

RF Interface:

  • SMA-Female - Standard configuration
  • SMA-Male - Optional
  • N-Type - High power applications
  • BNC - Special requirements

Power Interface: DC5.5×2.1mm / Aviation plug

Control Interface: TTL level / RS485

⚙️ Feature Customization

Optional Features:

  • Built-in jamming signal source
  • Temperature monitoring output
  • Power adjustment function
  • Remote control interface
  • LCD display
  • Digital communication interface

📦 Appearance Customization

Enclosure Material:

  • Standard aluminum alloy - Natural cooling
  • Enhanced cooling - With heatsink
  • Military-grade enclosure - IP65 protection

Surface Treatment: Anodizing / Coating

Logo Customization: Support silk screen/laser logo

📋 Documentation Customization

Technical Documentation:

  • Product specification
  • Test report
  • User manual (Chinese/English)
  • Schematic (optional)
  • PCB Layout (optional)
